Link Standard Sml

link software facilitates complete integration of Gapgun and vectro laser measurement
into existing production systems

Untitled

improve manufacturing and quality decisions

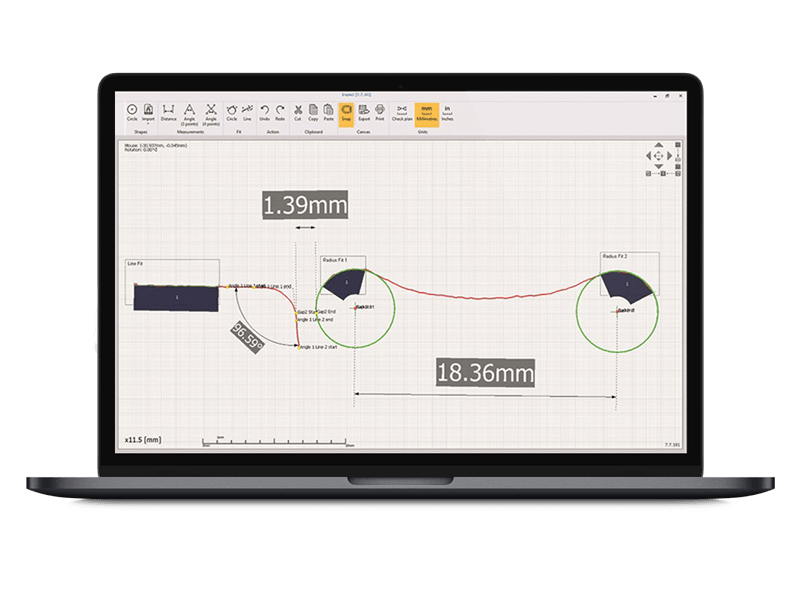

System Overview:

Link integration enables retrieval of information from the production system about parts to be measured. Point location, nominals, tolerances and CAD information are used to generate works orders. Following measurement with GapGun or Vectro, the results can then be automatically uploaded to the production system database.

benefits:
Design a process that meets your exact requirements  Speed up and simplify your data analysis  Collect more data, with even less operator training Automate sending measurement data exactly where you need it  Deploy measurement instructions from one central location
penicl clock discs arrow  links

features:

DYNAMICALLY CREATE
CHECKPLANS

Use existing production data to generate measurement instructions.


compass

SEAMLESSLY UPLOAD AND DOWNLOAD DATA

Download measurement instructions and upload results directly to production data base.

arrows

CREATE AUTOMATED
MEASUREMENT SYSTEMS

Use Link with Vectro to trigger robotic measurements and retrieve results.

robot

USE PRODUCT BARCODES

Link GapGun and Vectro to a
barcode reader, so parts can be scanned to retrieve a linked measurement instruction to
initiate inspection.

barcode

INTEGRATE WITH INLINE DISPLAYS

Display measurement results
on shop floor displays, as the
operator measures.


computer

CREATE CUSTOM INTERFACES

User interface can be designed
through a third party application
to suit your production
requirements.


interface

OPTIONAL SOFTWARE MODULE FOR USE WITH:

GapGun Pro logo web 225px  Standard


LINK: DEVELOPMENT

SDK

DOCUMENTATION

SUPPORT

The Software Development Kit is provided as a Nuget package for easy integration with Visual Studio.


Documentation is available to your developers to allow them to quickly and easily extend their software for integration with GapGun systems.

Integration support is available from Third Dimension's Development team.


sdk
documents
 support

link: specification
Compatible Data Collectors Vectro, GapGun Pro, GapGun MX+
Compatible Software System software V7
Compatible Sensor Heads Any VChange sensor head
Supported Operating Systems Windows 7-10
Supported Programming Languages C#, VB.Net and Managed C++ (C++/CLI)
Functions: Networking Find all data collectors on the network
Connect to a data connector
Functions: Services Initiate measurement
Subscribe to information about measurements
Functions: Connectionless Send an XML works order to a data collector
Retrieve an XML works order from a data collector
Retrieve results from a works order on a data collector, in a format specified by a template
List works orders on a data collector
Delete a works order on a data collector
Delete results from a works order on a data collector
Functions: Providers
(Requires additional licence)
Access 3D point cloud information
Implement custom virtual tool
Sample Applications Connectionless API demonstration (C# .NET)
Connected API demonstration (C# .NET)

To learn more about how Link can benefit your production, contact sales@third.com or download a brochure
