Precision automated feature measurement

The automated counterpart to the handheld GapGun

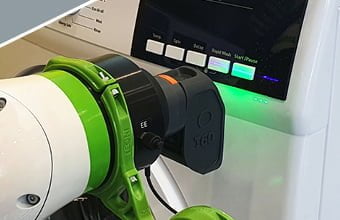

In conjunction with a Collaborative or industrial robot, Vectro®2 measures and inspects discrete 2D profiles in a wide range of industrial applications in aerospace, automotive, power generation and consumer goods manufacturing facilities.

Download Brochure

VECTRO®2 FOR UNIVERSAL ROBOTS

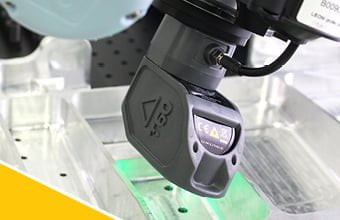

Vectro®2 uses Third Dimension’s latest T-Series sensor heads to capture the profile of the feature under test from which the required measurement data is obtained. Using a standard set of virtual tools, Vectro®2 quickly and accurately measures features such as:

  • Gap and flush
  • Radii
  • Chamfers
  • Angles
  • Welds
  • Burrs

Designed for automation

Compatible with the latest generation of industrial and collaborative robots from the world’s leading OEMs.

Automatic manufacturing decisions

Vectro®2 automates checking of parts against their dimensional specification with real-time, data-driven, decisions for QC and process control actions.

Pre-configured solutions

All-in-one packages of hardware and software, pre-configured for deployment on specific collaborative and industrial robots.

Modular and versatile

Vectro®2 is compatible with the new VChange2 sensor heads, allowing the measurement of a diverse range of feature shapes, sizes and surface types.

Accurate, repeatable, and traceable

Robotically guided measurements eliminate human error and ensure accurate results every time. T-series sensor heads come with full calibration certificates for proper traceability.

Easy and quick to integrate

Buy a pre-configured OEM solution pack for rapid deployment or create a custom software application in the .NET environment using the LINK SDK.

MEASUREMENTS PER YEAR WITHOUT NEED FOR DOWNTIME OR REPAIR.

Power rating
6W (12V @ 0.5A)
Screen
97mm (3.8”) Daylight readable, full colour, high resolution LCD touchscreen 640 x 480px
User interface
Touchscreen, power/reset button
Feedback
Audio output
Storage capacity
2GB internal storage
Peripheral devices
USB 2.0 port
IP rating
IP50
Ethernet
100Mbps Fast ethernet (100BaseTX)
Operating temperature
0 to 40C (32 to 104F)
Storage temperature
-20 to 60C (-4 to 140F)
Size
116 x 134 x 46.5mm (5.3 x 1.8 x 4.5”) W x D x H
Weight
460g (16oz)
Software
GapGun version 8 software
Supported network protocols
TCP/IP, Modbus TCP

Extras

On-site training

Get your team up-to-speed quickly with direct training from our expert engineers

Support package

Technical support and free software updates available with our support package

Software

Configure virtual measurement tools, log data, analyse measurement and more with our range of software
