VECTRO®2 FOR FANUC CRX

Third Dimension offer a plug and play Vectro®2 non-contact gauging solution for the new Fanuc CRX series of collaborative robots. The Fanuc CRX ‘expansion pack’ includes a custom software plugin that integrates Vectro®2 functionality into the graphical user interface of the Fanuc Tablet Teach Pendant.

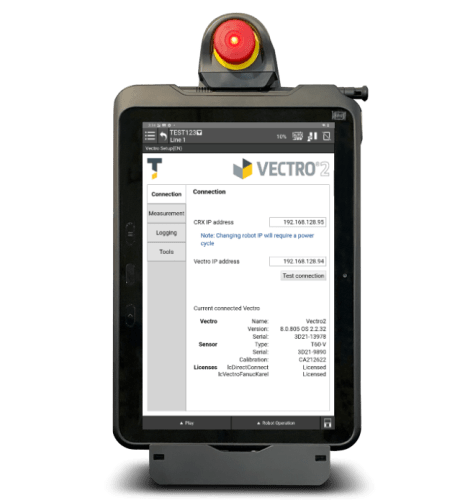

Adding Vectro®2 commands to a robot program is achieved by dragging and dropping the Vectro®2 ‘Measure’ icon into the program timeline and selecting the desired tool from a dropdown list. Automating inspection and measurement tasks has never been easier!

GAPGUN TECHNOLOGY

Based on the proven GapGun® hand-held gauging system, Vectro®2 enables automated 2D profile measurements to be carried out quickly and easily for both QC and process control applications.

VERSATILE

Measure gap and flush, edge, radius, chamfer, angle, and many other profile features in your manufacturing process.

CAPABLE

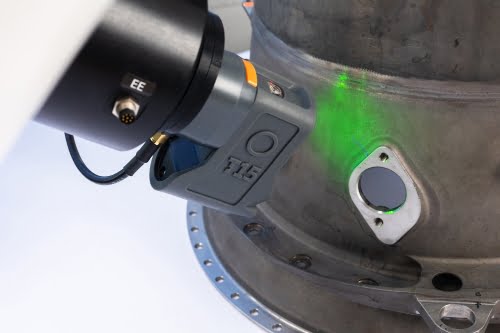

Violet laser technology enables measurement on challenging materials and surfaces such as Gloss paint, glass, plastics, bare metal, rubber, sealants, and fabrics.

PLUG AND PLAY

A Vectro®2 base system with a Fanuc CRX expansion pack provides a plug and play, automated, non-contact gauging solution for Fanuc CRX robots.

Package of pre-configured hardware and software
CRX Ready plug-in software
Drag and drop Vectro®2 commands into program timeline
Create powerful data-driven inspection and measurement processes
Dramatically improved productivity for rapid return on investment

REQUEST MORE INFORMATION

NEAT AND TIDY

Compact hardware and internal cable routing provide a neat and tidy installation.

T-Series sensor heads and VChange® compatible sensor mount have low mass and compact dimensions
Internal cable routing using robot’s CAM connectors
Ideal solution for applications where space is limited, and risk of snagging or collision is high

PACK CONTENTS

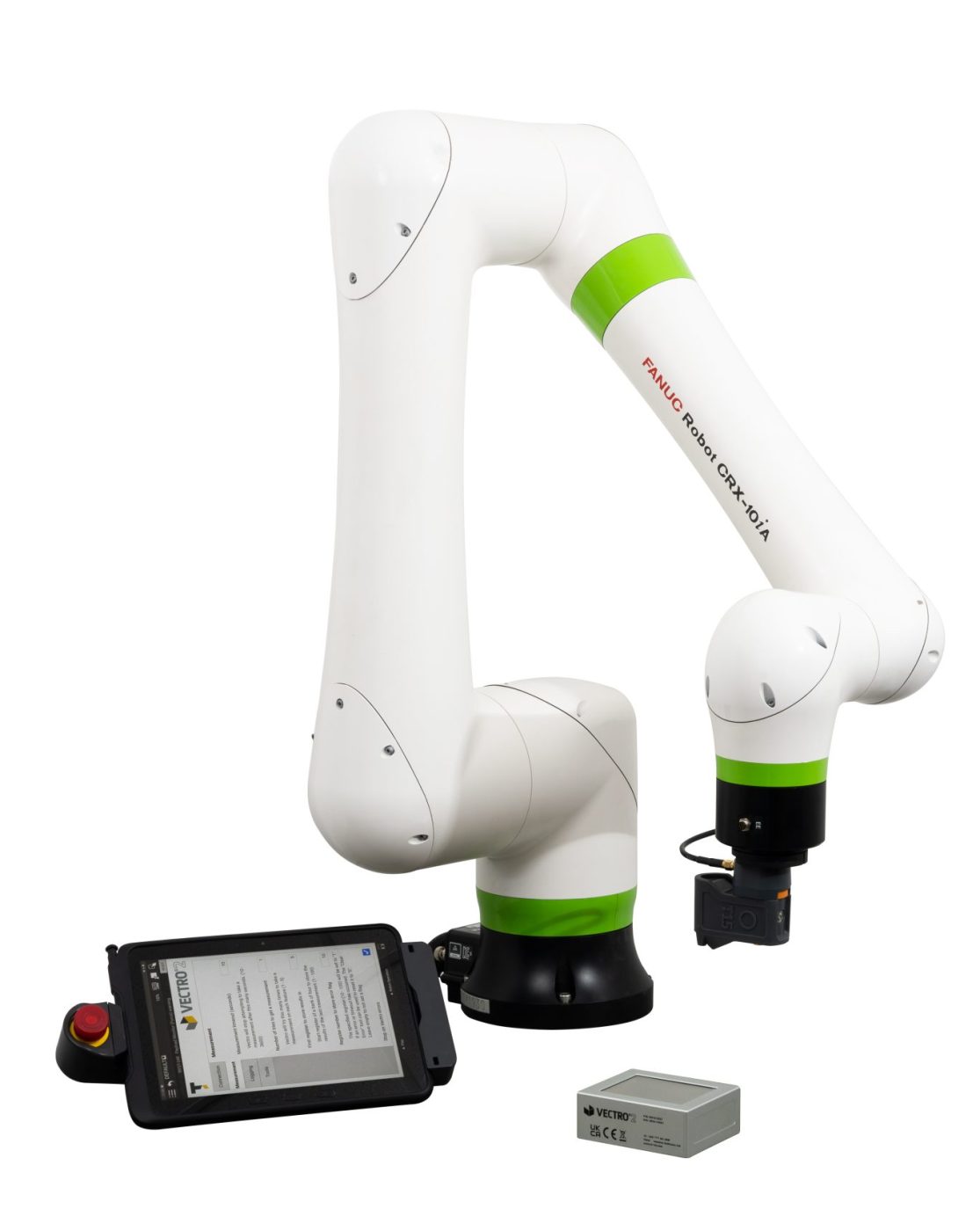

Fanuc CRX Expansion Pack includes:

VChange® sensor mount with ISO 9409-1 50mm PCD flange adaptor plate
CRX Ready plug-in software for Tablet Teach Pendant
Quick Start Guide
Internal cable routing kit

SMART MANUFACTURING:

By assigning measurement results to system registers on the robot controller it is possible to create data driven processes where program execution is guided by feature size. For example, you may wish to turn on a beacon light and pause the program if a feature is out of tolerance, or perhaps check additional features if a measurement is below a specified value. The possibilities are endless.

DATA OUTPUT:

Measurement data is output to a file or network share for access by third party data processing software packages such as QMS, PMS or SPC, for inspection and quality control purposes or fed back to the production process for closed loop control, minimising defects, and waste.

For more advanced applications, custom software can be developed using the LINK SDK that enables full Vectro®2 functionality and compatibility with existing GapGun® installations.

VECTRO INTEGRATORS:

Third Dimension are building a global network of independent Vectro®2 Integrators, or VI’s. VI’s are automation specialists, robot integrators trained and supported by Third Dimension, who offer complete, turnkey, automated inspection and measurement solutions based on Vectro®2. For details of your nearest VI, or if you are a robot integrator interested in becoming one, then please call +44 (0)3333 443 000 or email sales@third.com

EXTRAS

On-site training

Get your team up-to-speed quickly with direct training from our expert engineers

Support package

Technical support and free software updates available with our support package

Software

Configure virtual measurement tools, log data, analyse measurement and more with our range of software
