The complete feature and surface measurement tool

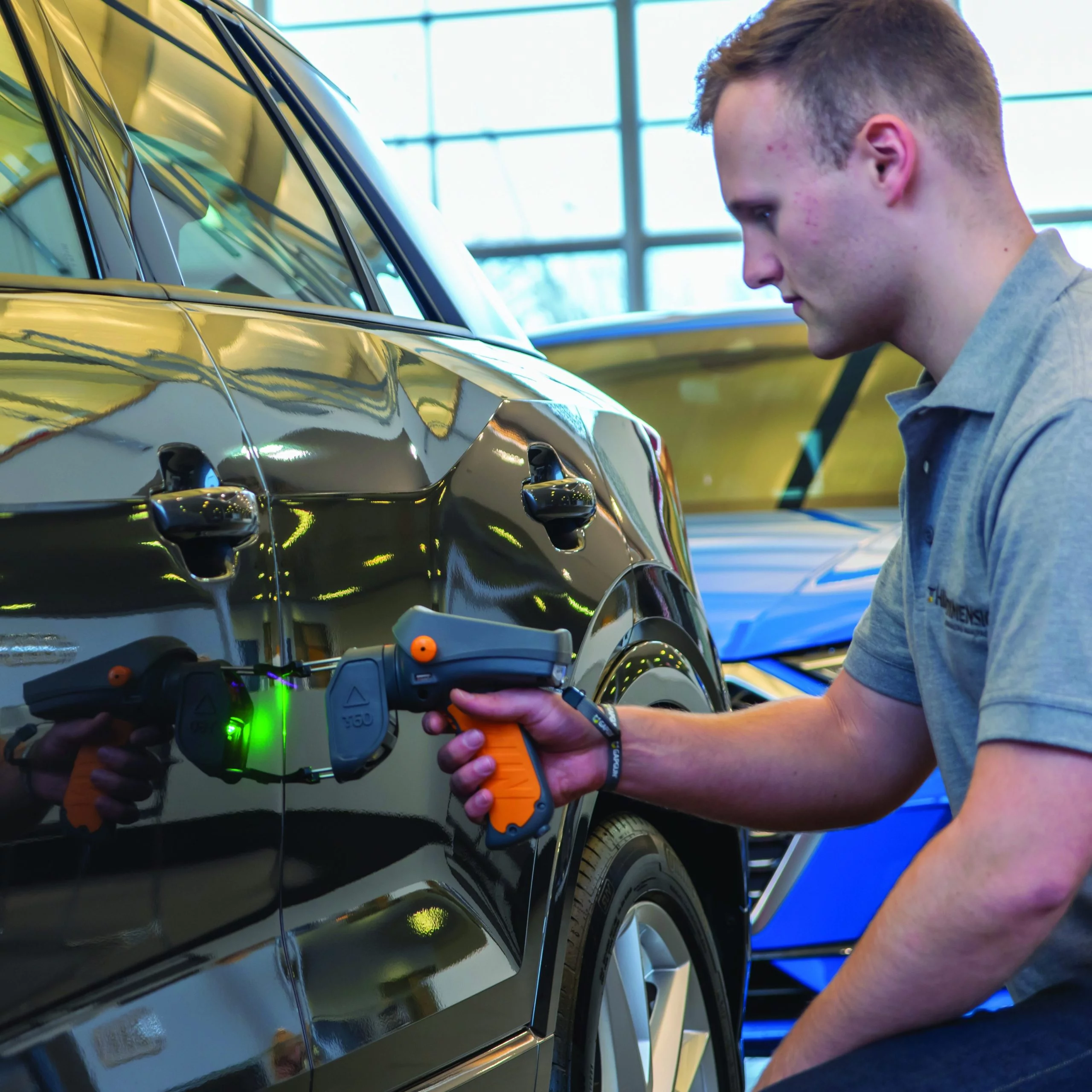

GapGun® is the dedicated non-contact tool for feature measurement.

Get fast, accurate and repeatable measurements on a wide range of parts and surface finishes.

Download brochure

GAPGUN® COMES EQUIPPED WITH A MARKET LEADING RANGE OF FEATURES

GAPGUN PRO2

The latest range within the GapGun® family, GapGun Pro2 paired with T series sensor heads combine the latest cutting-edge technology into the 25+ year established GapGun®. Now more robust but delivering 3.5x better pixel resolution for enhanced accuracy.

Download brochure

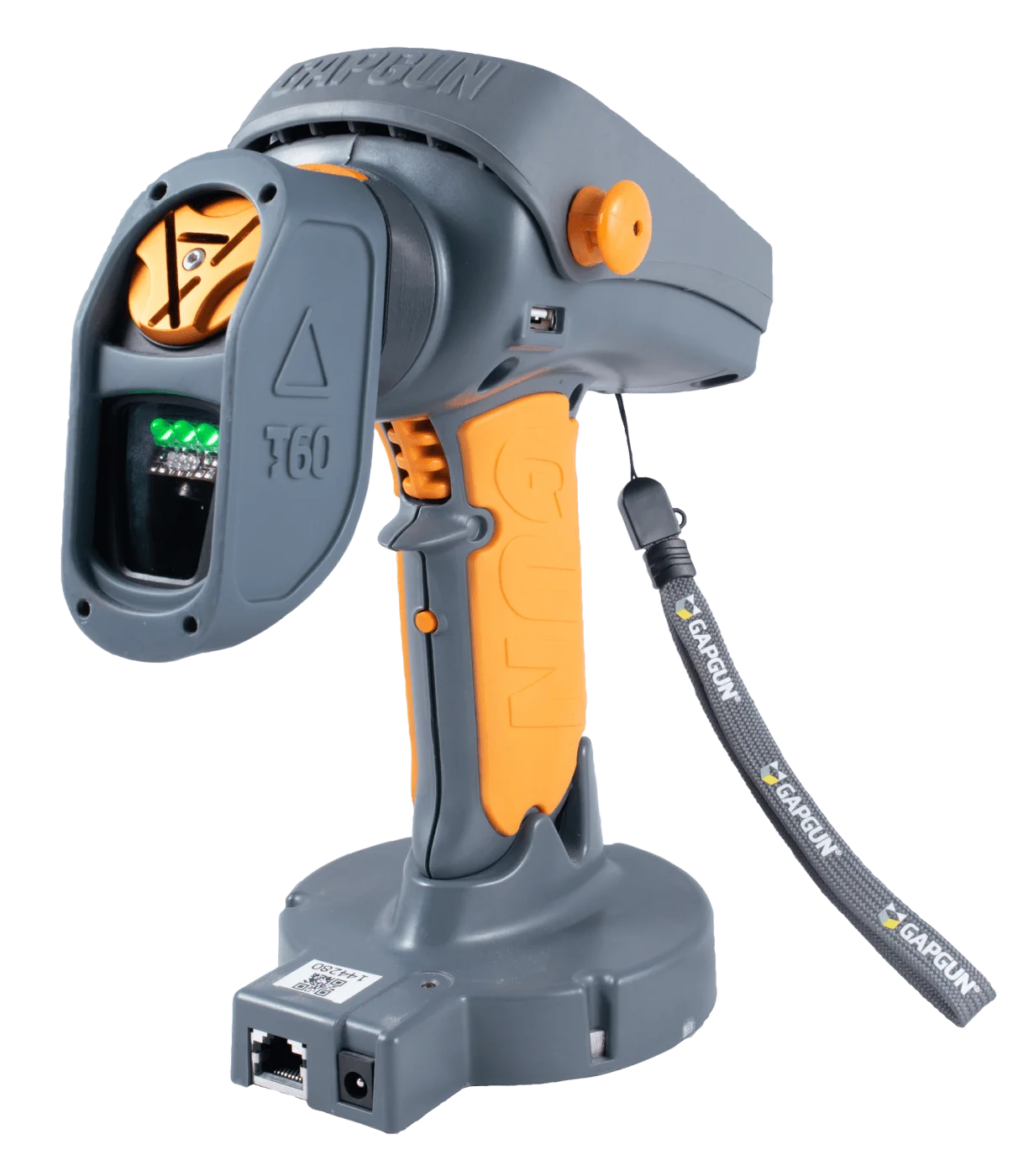

GAPGUN PRO

GapGun Pro measures gap and flush, radius, edge break, burr, countersink, scratch, weld, seal, angle and more. Paired with the FOV range of sensor heads, GapGun Pro is a well established product within the non-contact precision measurement market.

Download brochure

GAPGUN EDGE BREAK+

Measure chamfer, break edge and radii with the application specific GapGun®, GapGun Edgebreak+

Request information

GAPGUN COUNTERSINK

Measure countersinks quickly, accurately and get repeatable measurements when you use GapGun countersink.

GapGun Countersink provides a fast, effective, and repeatable solution for inspecting countersunk holes, which provides significant benefits over traditional mechanical gauges.

Download brochure

One tool, infinite applications

Measure gap, flush, radius, edge break, burr, countersink, scratch, weld, seal, angle and more. GapGun Pro can be paired with a range of sensor heads to suit your application.

Portable and robust

IP50 rated and shock protection sensor jacket included makes the GapGun Pro durable in a wide range of manufacturing environments. Its ergonomic design makes the GapGun the choice of measurement tool for operators. Simply attach it to the clip-on battery and it will last over 8 hours taking measurements.

Repeatable and accurate results

GapGun Pro can be specified with multiple field of view and resolution sensor, to take a wide range of measurements. GapGun Pro gives real world repeatability of 10μ or maximum feature size of 40mm.

Ensure ROI with fast inspection rates

GapGun Pro’s superfast processor means that measurements can be collected faster than ever before with speeds of up to 20x over manual techniques, reducing cycle time and increasing efficiency.

Get real-time data

GapGun® stores data internally as it measures and automatically connects to Wi-Fi for seamless productivity. Results can be downloaded at any time using integrated wireless link, USB port or docking station.

Easy to use

Full colour graphical check plans show operators how and where to measure. On-screen compass and colour coding guides positioning relative to the part, whilst sounds and vibrations alert operators of in/out tolerance conditions.

Save time when you automate manufacturing decisions

GapGun® automates checking of parts against their dimensional specification with real-time go/no-go decisions, or statistical analysis.

MEASUREMENTS PER YEAR WITHOUT
NEED FOR DOWNTIME OR REPAIR.

GAPGUN PRO TECHNICAL SPECIFICATIONS

Display / Size / Resolution
Full colour, daytime readable LCD touchscreen / 97mm (3.8”) / 640 x 480px
Ethernet
100MPS Fast Ethernet (100BaseTX)
Feedback
Audio output and haptic feedback
IP Rating
IP 50
Operating Temperature
0 - 40°C (32 to 104°F). Internal battery charging limited at higher temperatures.
Peripheral Devices
USB2.0 port
Power rating (battery)
4w (4.2v @ 0.95A)
Power rating (charging)
6w (12v @ 0.9A)
Shock Protection
Shock protecting cover on sensor and handle, and high impact plastic housing.
Size
90 x 135 x 190mm (3.5 x 5.3 x 7.5”) W x D x H
Software
GapGun version 7 software
Storage Capacity
2GB internal storage
Storage temperature
-20°C to 60°C (-4 to 140°F)
User Interface
Click and drag touchscreen, trigger and power/reset button
Weight
460g (16oz)
Wireless
IEEE 802.11. b,g,n
