Choose the perfect sensor for your application
Unlock the full potential of GapGun® and Vectro® data collectors with our T-series sensor head range. Each sensor brings unique capabilities, allowing for optimal configuration tailored to your specific applications.
This flexible setup enables the GapGun® and Vectro® to measure an extensive array of features, including those that are particularly challenging such as gap & flush of headlights/taillights, turbine blade edges, countersinks of all shapes and sizes, and more.
What makes a T-series sensor head special?
-

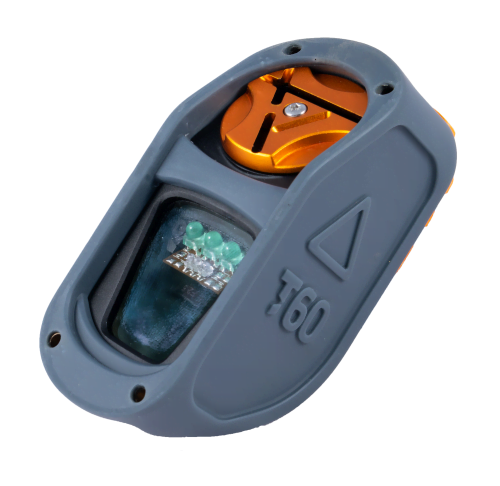

Adjustable laser mask
Adjustable laser mask
The T-series sensor incorporates an innovative adjustable laser mask mechanism. By rotating the laser mask, users gain the ability to customize the width of the laser beam. This unique feature enables users to capture a clear representation of their desired measurements, minimizing visual clutter and ensuring that the laser profile provides the most precise and unobstructed view of the target object
Adjustable laser maskThe T-series sensor incorporates an innovative adjustable laser mask mechanism. By rotating the laser mask, users gain the ability to customize the width of the laser beam. This unique feature enables users to capture a clear representation of their desired measurements, minimizing visual clutter and ensuring that the laser profile provides the most precise and unobstructed view of the target object
-
Optimized violet laser
Optimized violet laser
The T-series sensor uses an optimized violet laser, which provides exceptional performance on even the most challenging of surfaces, such as transparent glass/acrylic
Optimized violet laserThe T-series sensor uses an optimized violet laser, which provides exceptional performance on even the most challenging of surfaces, such as transparent glass/acrylic
-
V-change mechanism
V-change mechanism
With the T-series sensor’s V-change mechanism, users can easily rotate the sensor when it is attached to the GapGun®. This flexibility allows for convenient adjustment and alignment, ensuring that the sensor is perfectly positioned to access hard-to-reach areas or challenging angles. By effortlessly adapting the sensor’s orientation, users can optimize their measurement process and obtain accurate data with ease.
V-change mechanismWith the T-series sensor’s V-change mechanism, users can easily rotate the sensor when it is attached to the GapGun®. This flexibility allows for convenient adjustment and alignment, ensuring that the sensor is perfectly positioned to access hard-to-reach areas or challenging angles. By effortlessly adapting the sensor’s orientation, users can optimize their measurement process and obtain accurate data with ease.
-
LED measurement indicators
LED measurement indicators
The T-series sensor incorporates LED indicators that greatly enhance usability by providing visual cues for the optimal distance from the feature being measured. Maintaining the correct distance is crucial for obtaining reliable and consistent results. The LED indicators act as a reliable reference point, helping users achieve the necessary proximity for precise measurements
LED measurement indicatorsThe T-series sensor incorporates LED indicators that greatly enhance usability by providing visual cues for the optimal distance from the feature being measured. Maintaining the correct distance is crucial for obtaining reliable and consistent results. The LED indicators act as a reliable reference point, helping users achieve the necessary proximity for precise measurements
-
High resolution camera
High resolution camera
The T-series sensor is equipped with an advanced high-resolution camera that offers unparalleled capabilities in accurately mapping laser profiles, even for features that are fractions of a millimetre in size.
High resolution cameraThe T-series sensor is equipped with an advanced high-resolution camera that offers unparalleled capabilities in accurately mapping laser profiles, even for features that are fractions of a millimetre in size.

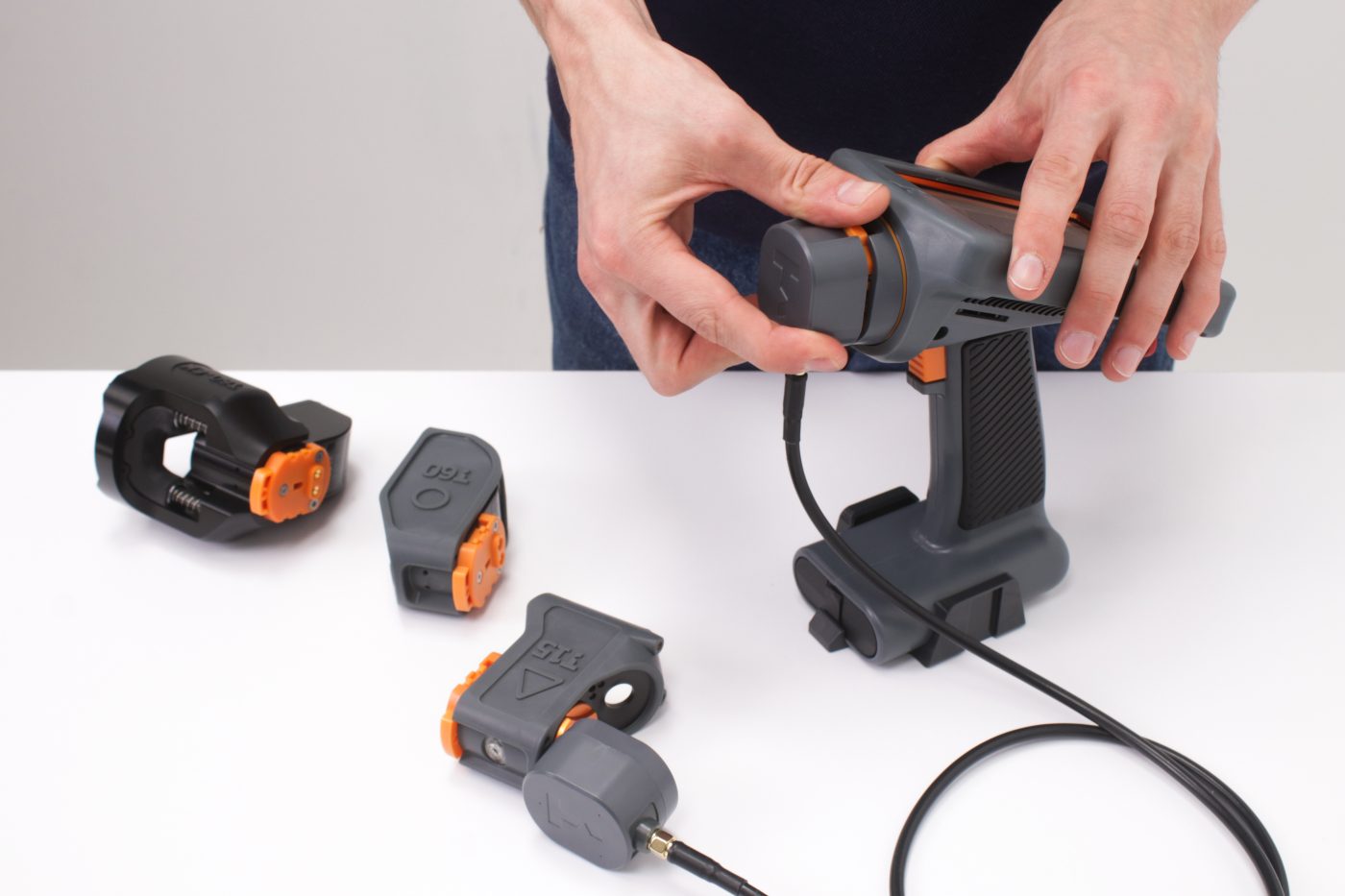

Swap in seconds
Ergonomically designed, the sensors are interchangeable so operators can measure a range of features with just one data collector – either GapGun® (hand-held) or Vectro® (automated).
Future proof your investment
One GapGun® or Vectro® can be partnered with the full range of compatible sensors. Should requirements change, you will only need to buy one additional sensor and not the entire system.
Get specialist advice
Not sure of which sensor to use? Our team of application engineers are on hand to advise on the optimal configuration for your application. Simply contact us and we can put you in touch with one of our application engineers
T-series sensor head range

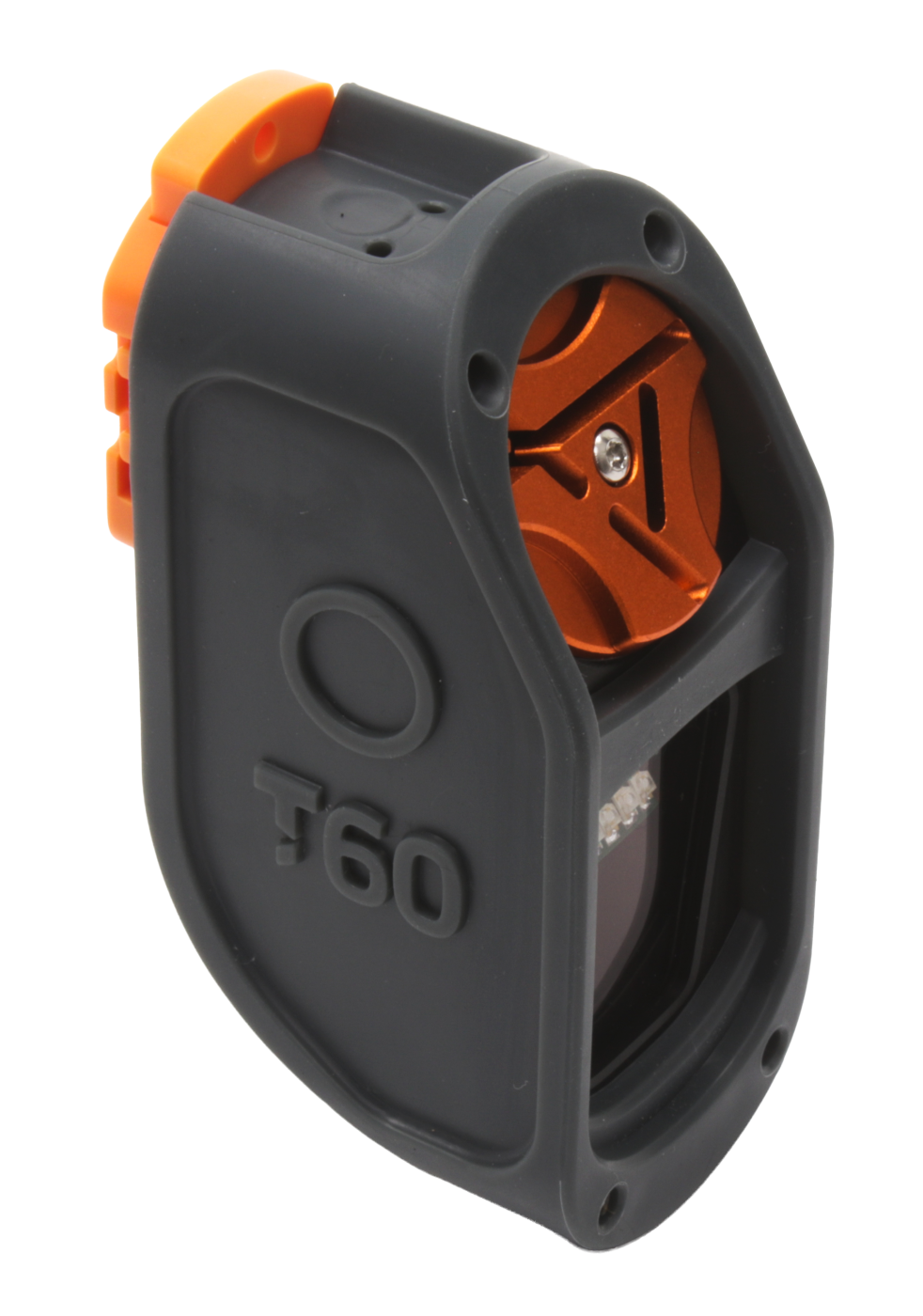

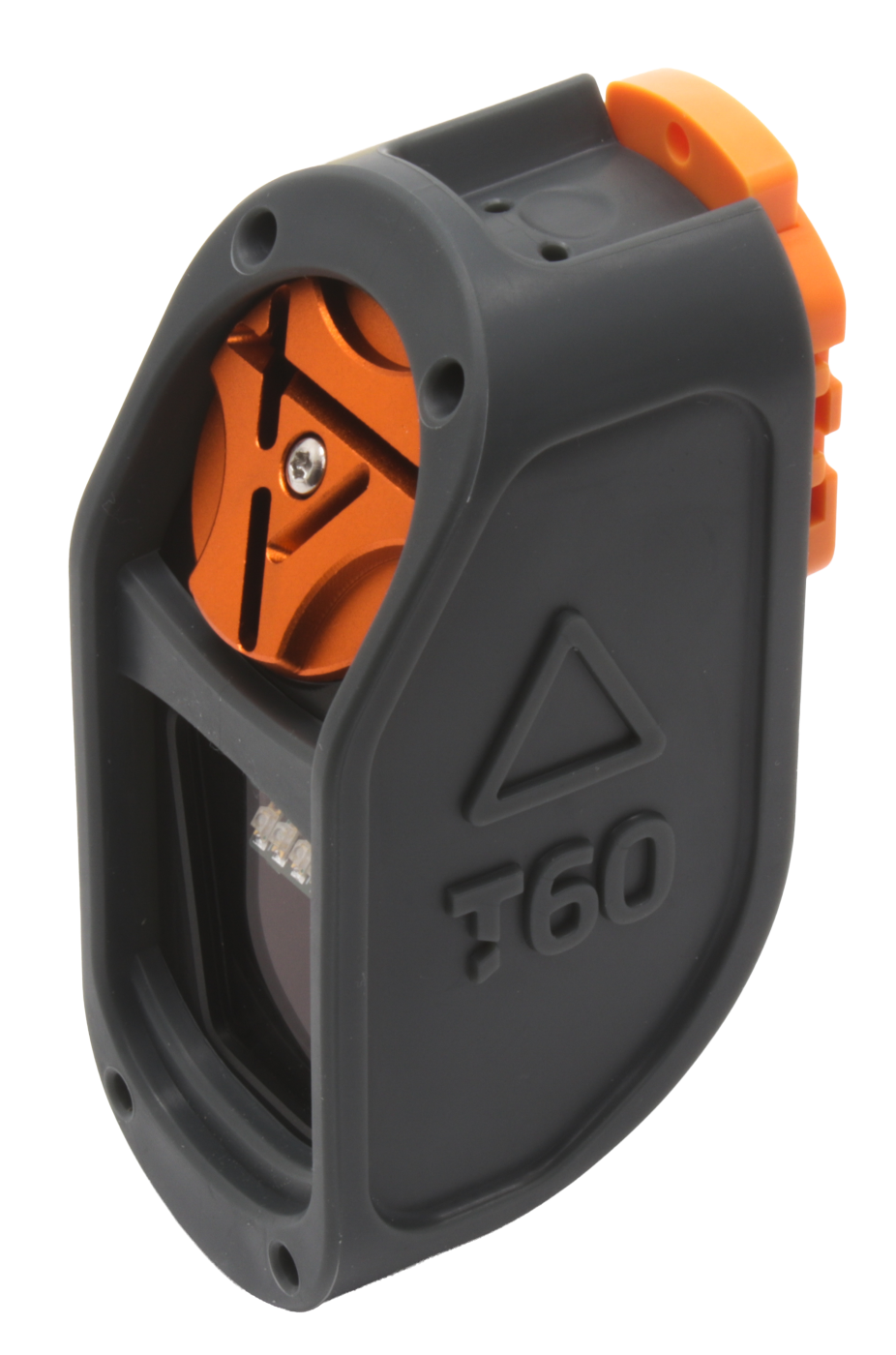

T60-V
One sensor, a universal range of features
- 60mm field of view
- Typical feature size range: 0.3mm – 25mm
- Common applications include gap & flush, seals and welds, …
- Utilizes the ‘V’ general purpose sensor – compatible with chrome, paint, glass and more

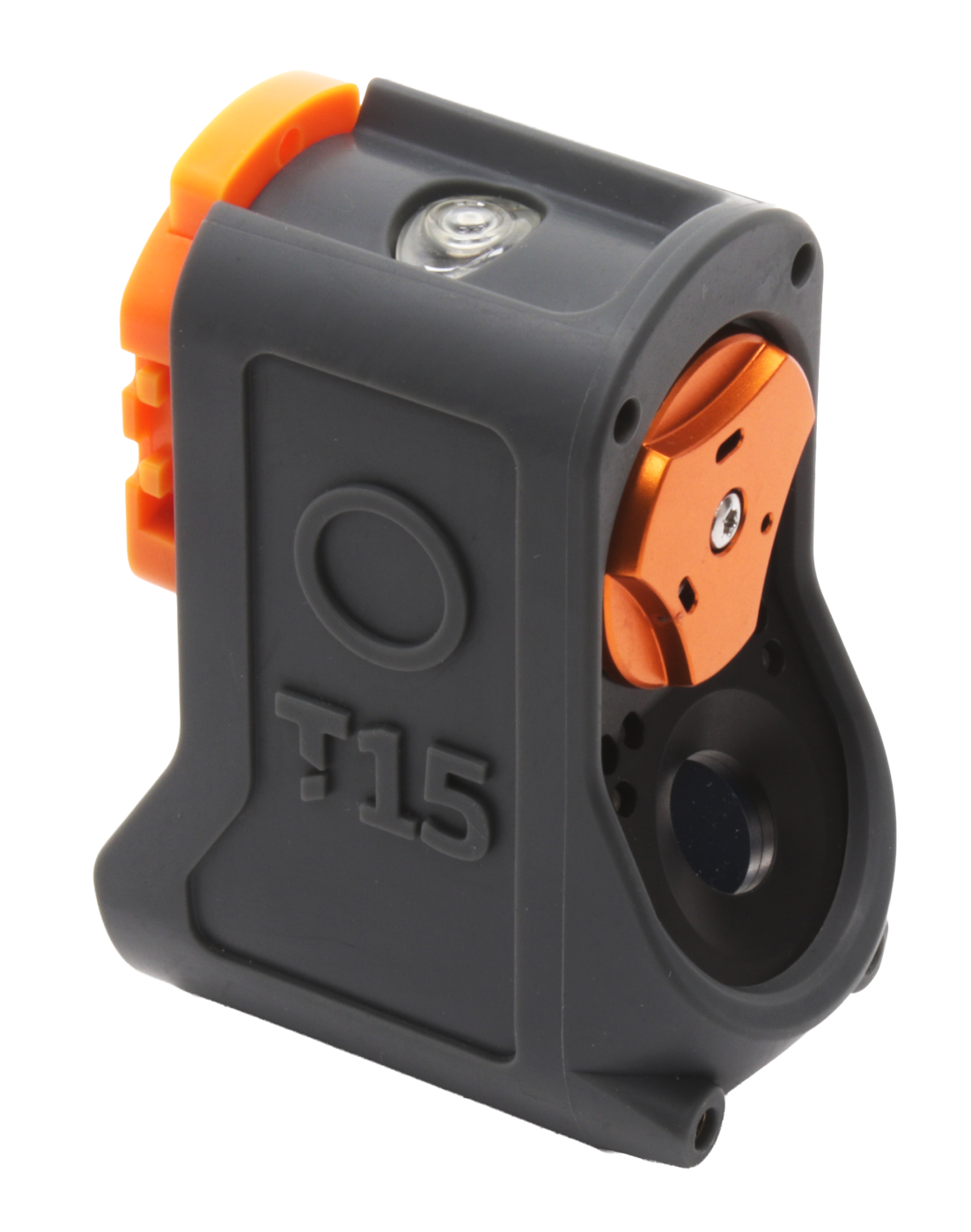

T15-V
High resolution, high performance
- 15mm field of view
- Typical feature size range: 0.1mm – 5mm
- Common applications include scratches, small radii and chamfers, break edges, …
- Utilizes the ‘V’ general purpose sensor – compatible with chrome, paint, glass and more

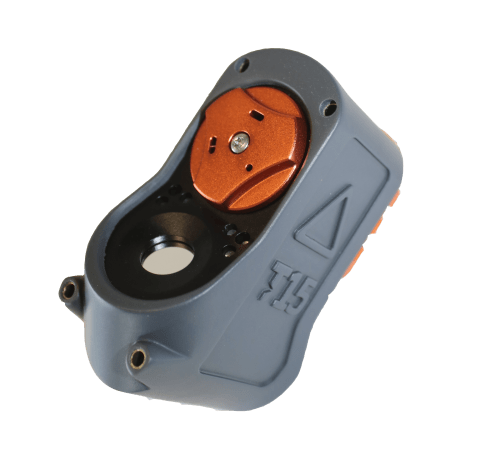

T15-M
Specially designed for shiny surfaces
- 15mm field of view
- Typical feature size range: 0.1mm – 5mm
- Common applications include turbine components and other reflective machined metal
parts… - Utilizes the ‘M’ specialised sensor for shiny surfaces – compatible with bright chrome and
other reflective surfaces

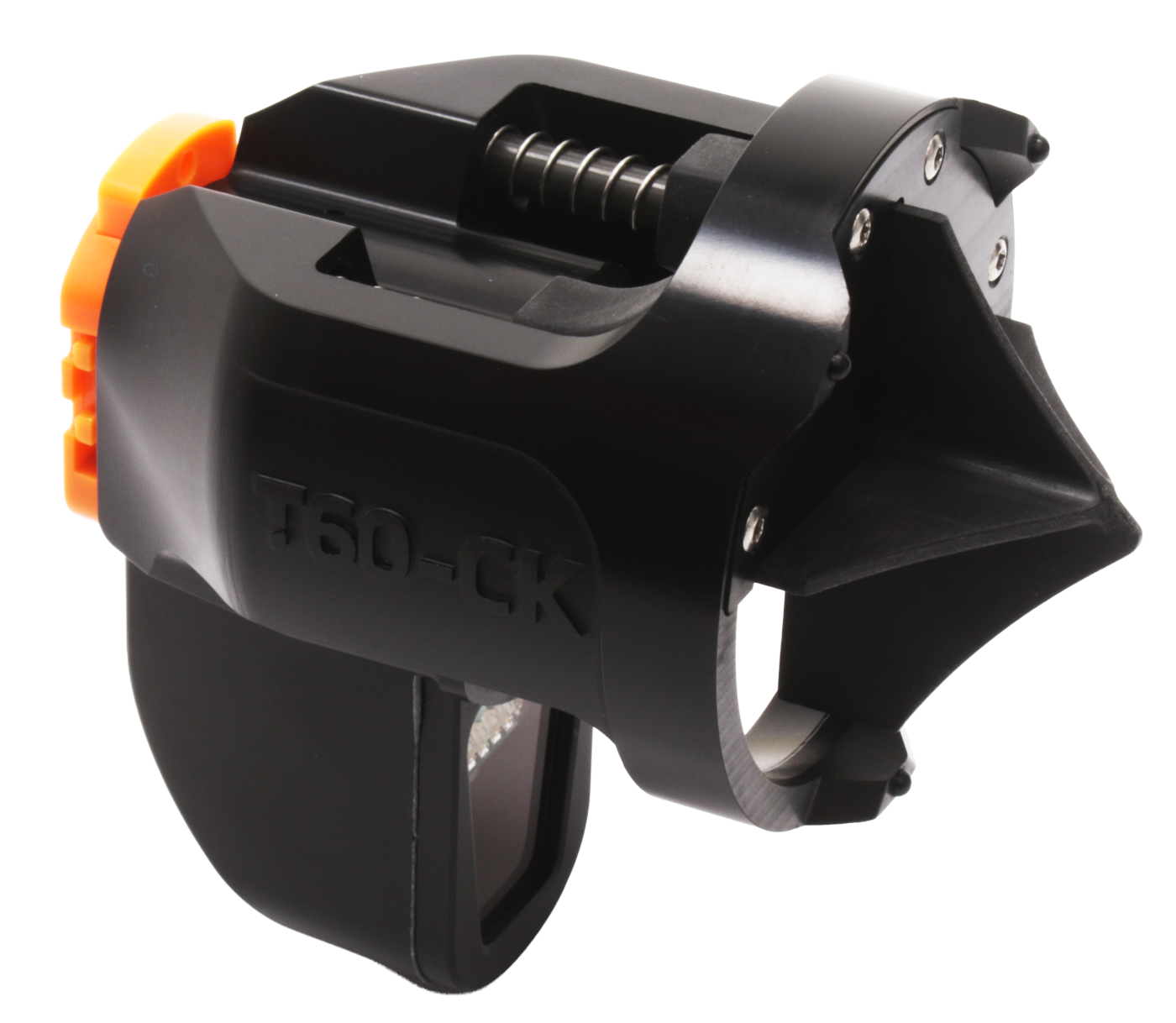

T60-CK
The solution for countersink measurements
- 60mm field of view
- Typical feature size range: 0.3mm – 25mm
- Designed specifically for countersinks and holes
- Compatible with chrome, paint, glass and more – utilizes the ‘V’ general purpose sensor
