Inspect is the ideal tool for replacing old contracer and shadowgraph techniques.
Use Inspect with GapGun® or Vectro® laser measurement systems to easily perform offline metrology checks.
Inspect enables live analysis of complex shapes that include aeroengine parts such as fan blades and compressor discs.
Inspect offers simple, digital inspection that can be completed in just seconds. Automatically record results that are traceable and repeatable. Generate reports that enable quick decisions to be made with confidence.

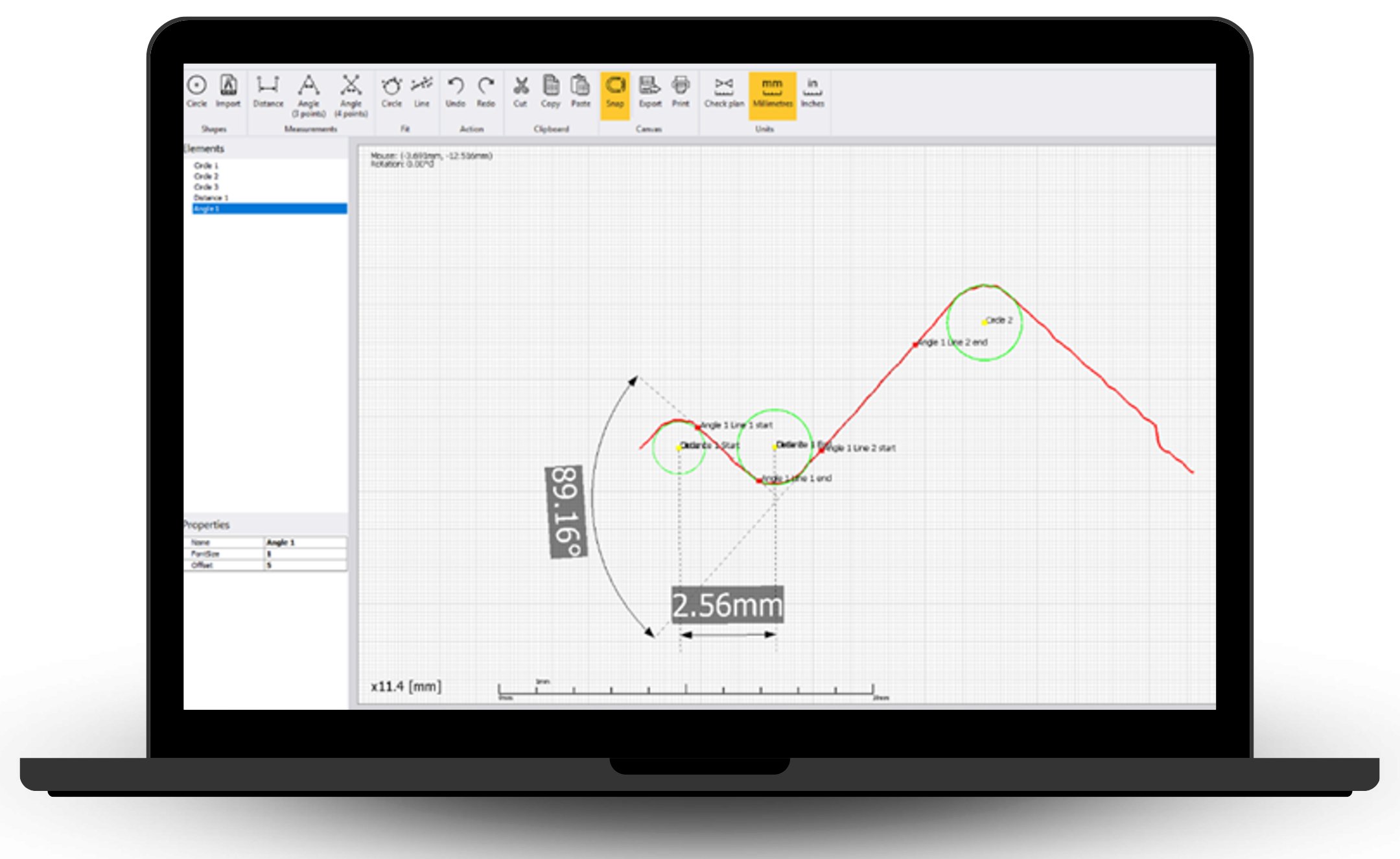

Measure distances
Measure angles
Fit circles
Fit lines
Compare against CAD
DIGITAL, ACCURATE AND RELIABLE
Obtain and record traceable and accurate results that are superior to interpretive contracer and shadowgraph techniques.
INTUITIVE, QUICK AND EASY
Use simple tools for instant analysis post measurement. Inspect also eliminates the need to for tool configuration in SPC3d and minimises user training.
FLEXIBLE
Freely define and extract dimensions in as many different ways as is required.
DEFINITIVE
Check the part is built to specification by comparing directly against the original CAD design data.
| TECHNICAL SPECIFICATION | |
|---|---|
| Measurement functions | Distance, 3 point angle, 4 point angle |
| Fitting functions | Circle fit, line fit |
| Comparison functions | IGES CAD file (2D), Circle |
| Export functions | PNG image, Print (supports PDF printers) |
| Supported units | Millimetres or inches |
| Compatible data collectors | GapGun® 6, GapGun® Pro2, Vectro®2 |
| Compatible software | System software 8.1 |
| Compatible sensor heads | T-series |
| Supported operating systems | Windows 10, Windows 11 |
| Interface | Drag/drop interface, unlimited undo/redo, click to measure, live measurements |
Our experienced team of Application Engineers can help you prepare detailed checkplans to meet your bespoke needs.
